Stair

This stair, which I designed and built for my own apartment, tries to provide optimum slope within a very tight space. It is essentially a spiral stair whose central column has been “deformed” so that it fits and works within a rectangular stairwell.

screen-shot-2015-03-19-at-12-52-58

stair-construction

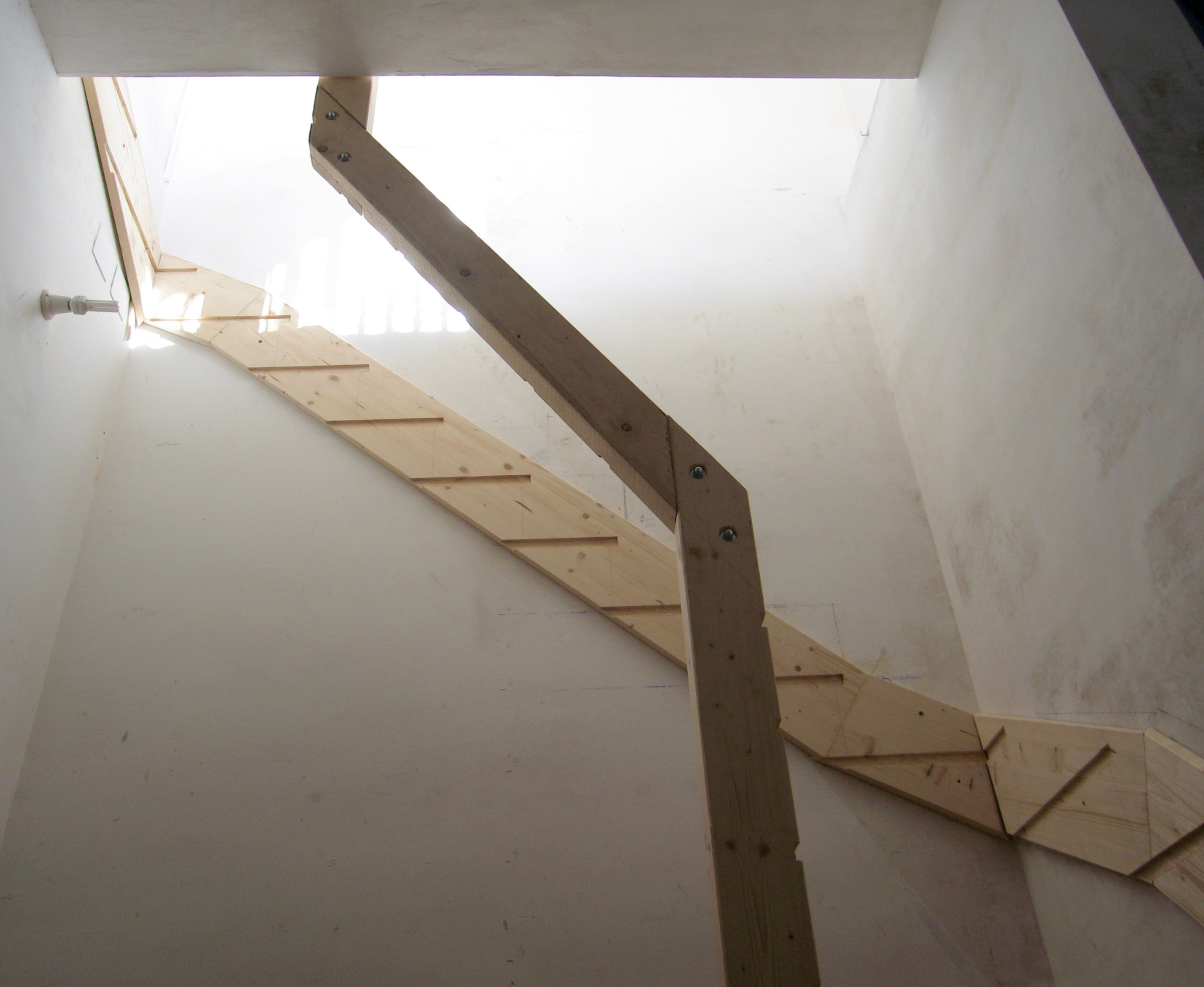

Stair during construction, with only the stringers in place.





Advertisements

About Rafael Gomez-Moriana

I am an architect, writer and educator. rafagomo.com chronicles my architectural making, writing, teaching and curating activity, while criticalista.com is an archive of my writings as well as a platform for venting personal rants and observations. I studied architecture at the University of Waterloo (Canada) and at the Berlage Institute (the Netherlands). I direct the University of Calgary’s architecture term-abroad program in Barcelona, and have previously taught in the Metropolis Masters Program in Architecture and Urban Culture, CIEE Architecture and Design program, as well as at Carleton University and the University of Manitoba.

3 comments

  1. Nice. Can you give us some dimensions? How large is that tight space? (I would guess about 2m by 2m, and height of 3m?)What is the size of each step?

  2. The existing conditions were an opening in the upper floor of 2,20 x 0,72 m, and a floor-to-floor height of 2,87 m. The overall plan dimensions of the stair: the long segment of the “L” shape measures 2,20 m; the short one 1,27 m. The stair has 14 risers at 20,5 cm, while the average tread dimension is 23 cm.

  3. Looks GR8…and functional as well.
